DTC B108E-06: HDCP Authorization Error: Notes
WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DTC B108E:06 (CONNECTIVITY MASTER UNIT) DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
HDCP Authorization Error |
| Detection condition |
- The connectivity master unit (CMU) detected an HDCP authorization error for 5 s or more with the ignition switched ON (engine off or on).
|
| Fail-safe |
Not applicable |
| Possible cause |
- Incorrect display is equipped
- Center display connector or terminal malfunction
- Connectivity master unit (CMU) connector or terminal malfunction

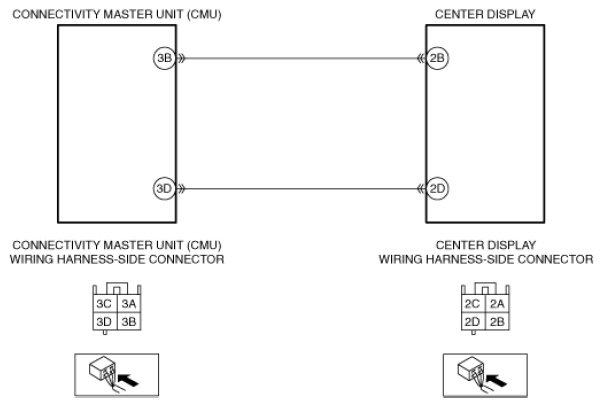

- Short to ground in wiring harness between the following terminals:
- Connectivity master unit (CMU) terminal 3B and center display terminal 2B
- Connectivity master unit (CMU) terminal 3D and center display terminal 2D
- Short to power supply in wiring harness between the following terminals:
- Connectivity master unit (CMU) terminal 3B and center display terminal 2B
- Connectivity master unit (CMU) terminal 3D and center display terminal 2D
- Open circuit in wiring harness between the following terminals:
- Connectivity master unit (CMU) terminal 3B and center display terminal 2B
- Connectivity master unit (CMU) terminal 3D and center display terminal 2D
- Center display malfunction
- Connectivity master unit (CMU) malfunction
|
|
|
