Rear Cover Assembly Note

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the alignment surface of the carrier and rear cove.
  2. Apply pressure to the case using a press and install the rear cover using the SSTs (49 B032 335A) as shown in the figure.
    Fig 1: Installing Rear Cover Using SST (49 B032 335A)
    G12234224Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • Do not apply pressure of 2 t or more.
  3. Install the bolts with the specified torque as shown in the figure.

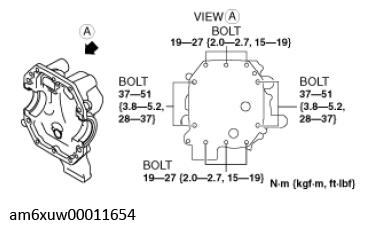

Fig 2: Installing Rear Cover Assembly Bolts With Torque Specification
G12234225Courtesy of MAZDA MOTORS CORP.
