Rear Lower Arm Removal/Installation: Notes
WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Be careful not to allow the coil spring to fly off when removing/installing the coil spring. Otherwise, the coil spring could fly off and cause serious injure or death, or damage to the vehicle.
- Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal. (See Suspension Links Installation Note .)
- Inspect the wheel alignment and adjust it if necessary. (See REAR WHEEL ALIGNMENT

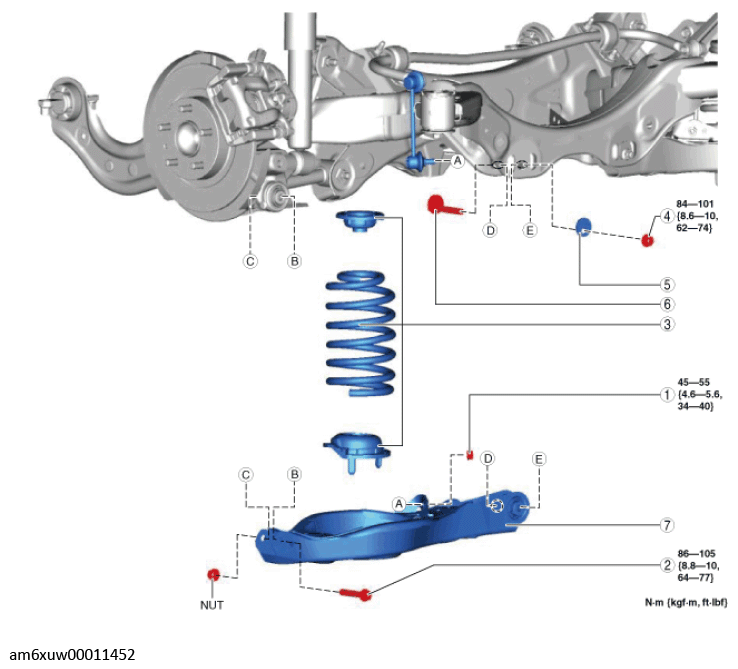

.)COMPONENT DESCRIPTION
1 Rear stabilizer control link lower side nut
(See REAR STABILIZER REMOVAL (2WD) .)
(See REAR STABILIZER INSTALLATION (2WD) .)2 Rear lower arm outer bolt
(See Rear Lower Arm Outer Bolt Removal Note .)
(See Rear Lower Arm Outer Bolt Installation Note .)3 Rear coil spring component
(See REAR COIL SPRING REMOVAL/INSTALLATION .)4 Rear lower arm inner nut
(See Adjusting Cam Bolt, Cam Plate and Rear Lower Arm Inner Nut Installation Note .)5 Cam plate
(See Adjusting Cam Bolt, Cam Plate and Rear Lower Arm Inner Nut Installation Note .)6 Adjusting cam bolt
(See Adjusting Cam Bolt, Cam Plate and Rear Lower Arm Inner Nut Installation Note .)7 Rear lower arm
