Plate Installation Note

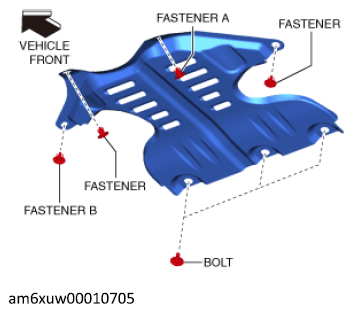

  1. Install fastener A shown in the figure.
    G12230392Courtesy of MAZDA MOTORS CORP.
  2. Install fastener B shown in the figure.
  3. Install the remaining fasteners.
  4. Tighten the bolts shown in the figure to the specified torque.

    Tightening torque

    9-12 N.m {92-122 kgf.cm, 80-106 in.lbf}
