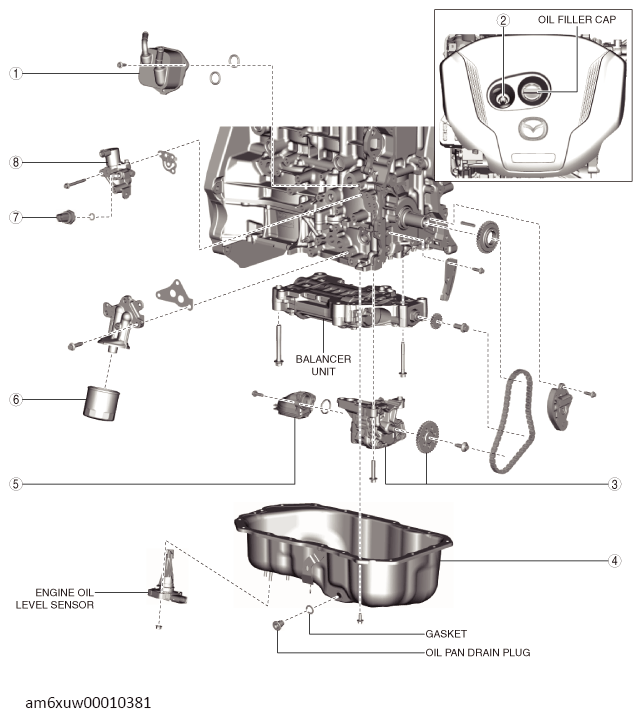

Lubrication System Location Index
PART DESCRIPTION
| 1 | Oil cooler (See OIL COOLER REMOVAL/INSTALLATION .) |
| 2 | Dipstick (See ENGINE OIL LEVEL INSPECTION .) (See ENGINE OIL REPLACEMENT .) |
| 3 | Oil pump component (See OIL PUMP REMOVAL/INSTALLATION .) |
| 4 | Oil pan (See OIL PAN REMOVAL/INSTALLATION .) |
| 5 | Oil strainer (See OIL PUMP REMOVAL/INSTALLATION .) |
| 6 | Oil filter (See OIL FILTER REPLACEMENT .) |
| 7 | Engine oil temperature sensor/engine oil pressure sensor (See OIL PRESSURE INSPECTION .) |
| 8 | Engine oil solenoid valve (See ENGINE OIL SOLENOID VALVE REMOVAL/INSTALLATION .) (See ENGINE OIL SOLENOID VALVE INSPECTION .) |
