Rear Ultrasonic Sensor Short-Cord Inspection
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the following parts:
- Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION .)
- Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION .)
- Rear ultrasonic sensor short-cord (See REAR ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION .)

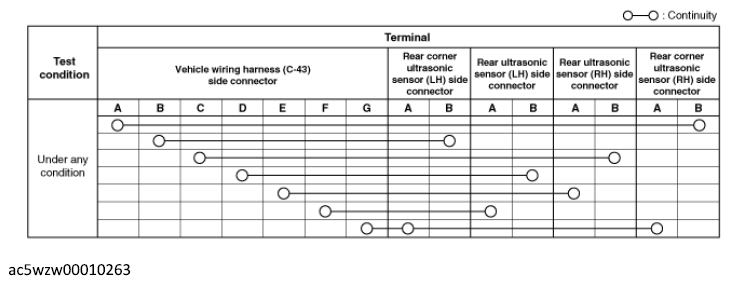

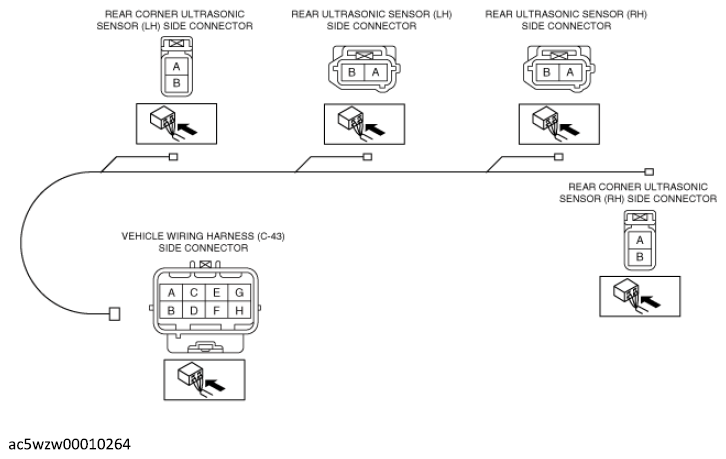

- Verify that the continuity between the rear ultrasonic sensor short-cord terminals is as indicated in the table.
- If not as indicated in the table, replace the rear ultrasonic sensor short-cord. (See REAR ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION .)
