Active Driving Display Short-Cord Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the battery. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G (VIN Y)] .) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G (VIN M)] .)
  3. Disconnect the brake pipes from the master cylinder. (See MASTER CYLINDER REMOVAL/INSTALLATION .)
  4. Remove the following parts:
    1. Side wall (driver side) (See SIDE WALL REMOVAL/INSTALLATION .)
    2. Front heat duct (LH) (See FRONT HEAT DUCT REMOVAL/INSTALLATION .)
    3. Brake pedal (See BRAKE PEDAL REMOVAL/INSTALLATION .)
    4. Meter hood No. 2 (See METER HOOD REMOVAL/INSTALLATION .)
    5. Active driving display (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION .)
  5. Disconnect the connector.

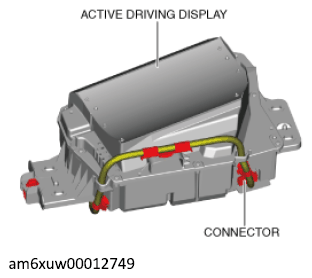

    G12237583Courtesy of MAZDA MOTORS CORP.
  6. Remove the clips.

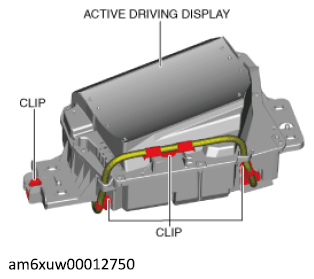

    G12237584Courtesy of MAZDA MOTORS CORP.
  7. Pull out the active driving display short-cord from the hooks.

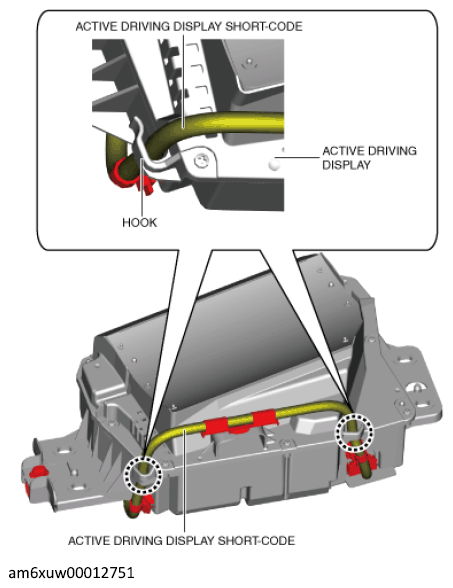

    G12237585Courtesy of MAZDA MOTORS CORP.
  8. Remove the active driving display short-cord.
  9. Install in the reverse order of removal.
