DTC C0089-64: DSC Off Switch [Dynamic Stability Control (DSC)]: Notes
DTC C0089:64 [DYNAMIC STABILITY CONTROL (DSC)] DETECTION CONDITION AND POSSIBLE CAUSE
| DTC |
C0089:64 |
DSC OFF switch |
| DETECTION CONDITION |
- Continuous ON signal from the DSC OFF switch for 10 s or more is detected.
|
| FAIL-SAFE FUNCTION |
|
| POSSIBLE CAUSE |
- The driver pressed and held the DSC OFF switch for 10 s or more.

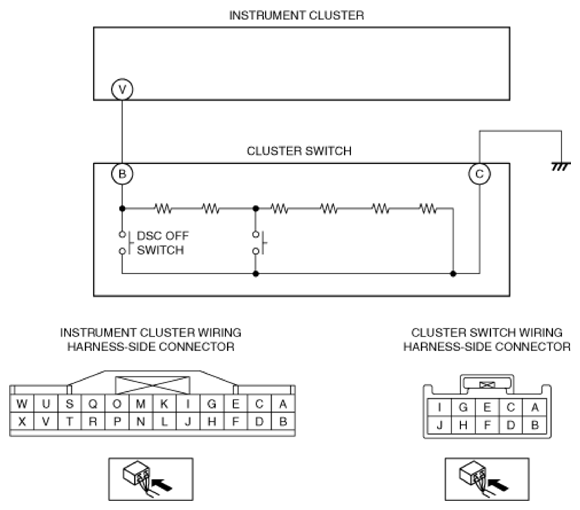

- Short to ground in the wiring harness between the instrument cluster terminal V and cluster switch terminal B
- Open circuit in wiring harness between cluster switch terminal C and body ground
- Cluster switch malfunction
- DSC OFF switch malfunction
- Poor connection at connectors (female terminal)
|
 Courtesy of MAZDA MOTORS CORP.
|
