Clearance inspection

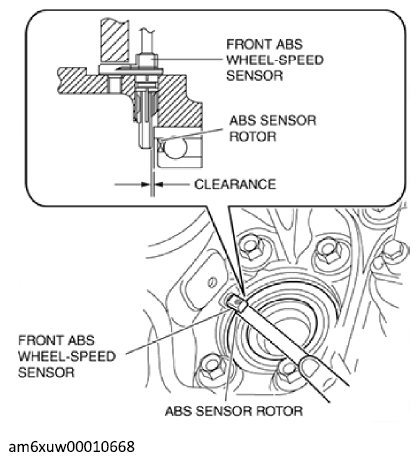

Measure the gap between the ABS sensor rotor and front ABS wheel-speed sensor using a feeler gauge.

Courtesy of MAZDA MOTORS CORP.
- If not within the specification, verify the following items and repair or replace if necessary.
  - Is there deformation or damage to the ABS sensor rotor?
  - Is there deformation or damage to the ABS wheel speed sensor?
  - Is there foreign matter adhering?
    Clearance

    0.87-1.53 mm {0.035-0.060 in}
