Rear Seat Back Latch Removal/Installation

  1. Disconnect the negative battery terminal. (With rear seat warmer system) (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    2. Rear seat side back (See REAR SEAT SIDE BACK REMOVAL/INSTALLATION .)
    3. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    4. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    5. High-mount brake light (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION .)
    6. Rear package trim (See REAR PACKAGE TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the remote cable.
  4. Remove the nuts.

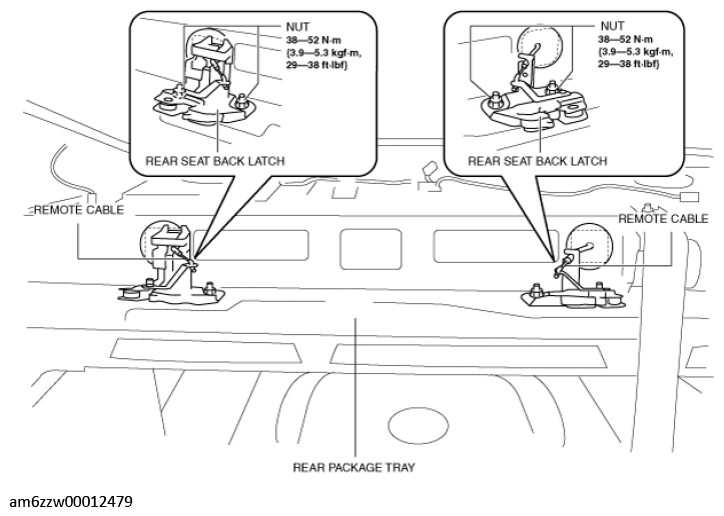

    Fig 1: Rear Seat Back Latch Nuts With Torque Specification
    G11543665Courtesy of MAZDA MOTORS CORP.
  5. Remove the rear seat back latch.
  6. Install in the reverse order of removal.
