Power Seat Switch Removal/Installation

WARNING:
  1. Switch the ignition OFF (LOCK).
  2. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  3. Remove the front seat side cover. (See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION .)
  4. Remove the screws.

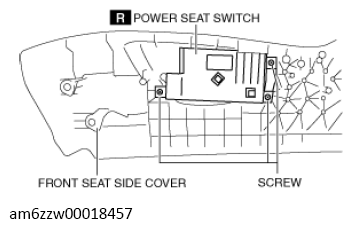

    G13724674Courtesy of MAZDA MOTORS CORP.
  5. Remove the power seat switch.
  6. Install in the reverse order of removal.
