Lumbar Support Motor Inspection

WARNING:

Handling a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings/cautions in the Service Information before handling the front seat (side air bag integrated). (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)

Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

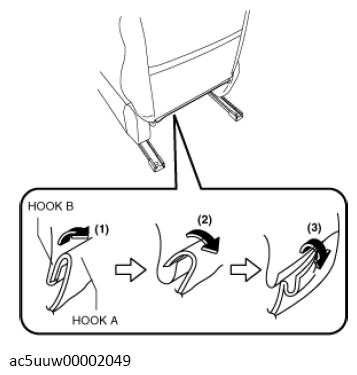

Slide hooks A in the order of arrows (1), (2), (3) shown in the figure and disconnect them from hooks B.

Courtesy of MAZDA MOTORS CORP.
Open fasteners.

Courtesy of MAZDA MOTORS CORP.
Disconnect the lumber support motor connector.
Apply battery positive voltage to the lumber support motor terminals and inspect the front seat operation.

Courtesy of MAZDA MOTORS CORP.
- If not as specified, replace the lumbar support unit. (See LUMBAR SUPPORT UNIT REMOVAL/INSTALLATION .)
