Front Seat Warmer Control Unit Inspection
>>

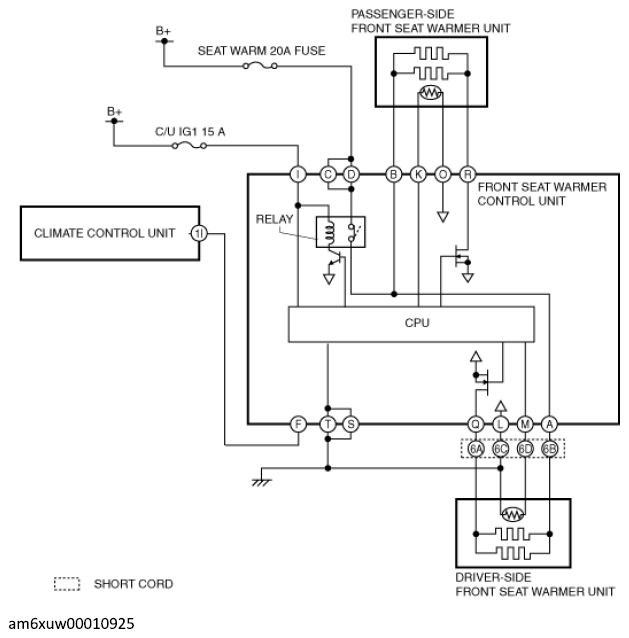

System Diagram
System Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
