Rear console side

  1. Switch the ignition OFF (LOCK).
  2. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  3. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)

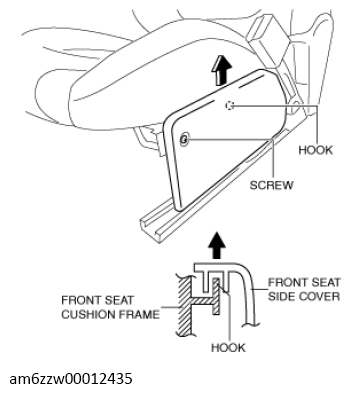

  4. Remove the screw.
    G13724639Courtesy of MAZDA MOTORS CORP.
  5. Pull up the front seat side cover in the direction of the arrow shown in the figure and unhook it.

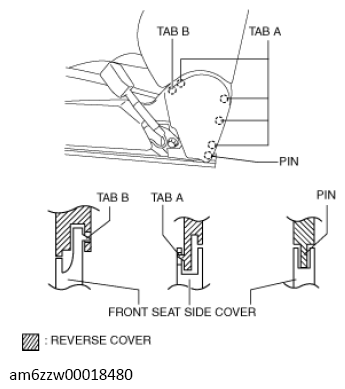

  6. Using the remover tool, disconnect tabs A and B, and the pin.
    G13724640Courtesy of MAZDA MOTORS CORP.

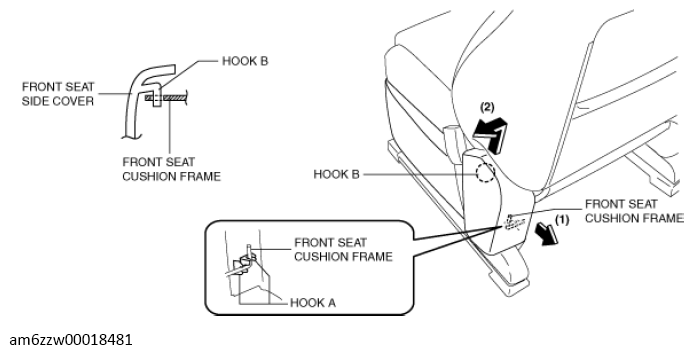

  7. Pull the front seat side cover in the direction of the arrow shown in the figure and unhook it from hooks A.
    G13724641Courtesy of MAZDA MOTORS CORP.
  8. Pull the front seat side cover in the direction of arrow (2) shown in the figure and unhook hook B.
  9. Remove the front seat side cover.
  10. Install in the reverse order of removal.
