Driver's Side

  1. Disconnect the negative battery terminal and wait for 1 min or more. (Without power seat system) (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the head restraint.
  3. Slide the front seat to the positions where the bolts shown in the figure can be removed.
  4. Remove the bolts.

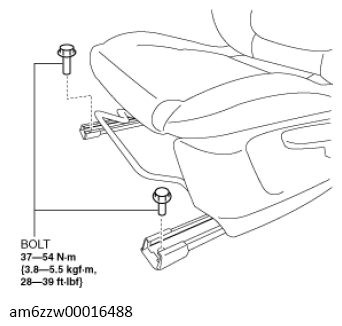

    Fig 1: Front Seat Bolts With Torque Specification - Driver's Side
    G13724619Courtesy of MAZDA MOTORS CORP.
  5. Slide the front seat to the positions where the bolts shown in the figure can be removed.
  6. Remove the bolts.

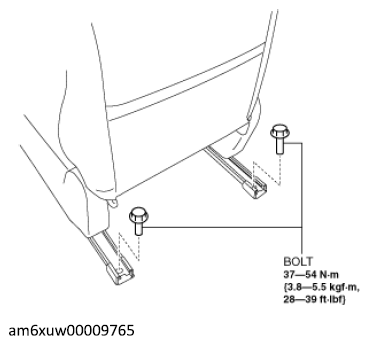

    Fig 2: Front Seat Bolts With Torque Specification
    G12236090Courtesy of MAZDA MOTORS CORP.
  7. Disconnect the negative battery terminal and wait for 1 min. or more. (With power seat system) (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

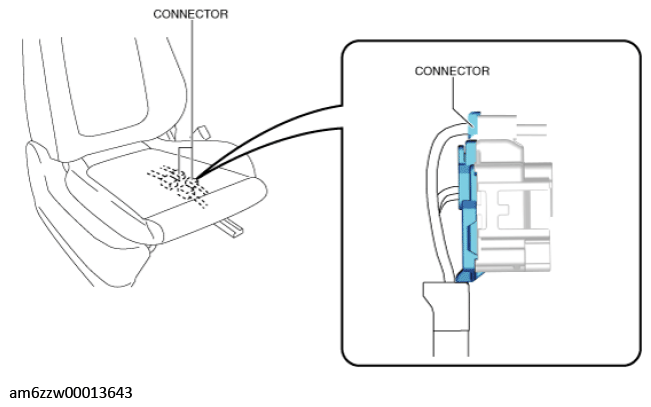

  8. Disconnect the connector (With position memory system).
    G11543611Courtesy of MAZDA MOTORS CORP.

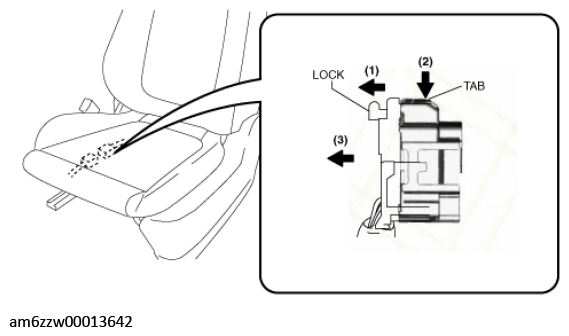

  9. Slide the lock in the direction of arrow (1) shown in the figure, and while pressing the tab in the direction of arrow (2), disconnect the connector in the direction of arrow (3).
    G11543609Courtesy of MAZDA MOTORS CORP.
  10. Remove the front seat.
  11. Install in the reverse order of removal.
