Front Seat Cushion Frame/Adjuster Unit Removal/Installation
WARNING:
- Handling a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings/cautions in the Service Information before handling the front seat (side air bag integrated). (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
- If the sliding mechanisms on both sides are not locked after assembling the front seat, the front seat will operate accidentally while the vehicle is driven, which could result in serious injury. After assembling the front seat, shake it up and down and verify that the sliding mechanism on the both sides are locked.
CAUTION:
- After the front seat has been removed, if the slider lever is operated and the front seat is reinstalled with the left/right slide positions deviated, the adjuster unit could be damaged. After removing a front seat, do not operate the slider lever.
- Verify that there are no malfunctions in the forward/back slide of the seat and in the adjuster unit after installing a front seat.
- When performing the procedure with a front seat removed from the vehicle, perform the procedure on a clean cloth so as not to damage or soil the seat.
- Switch the ignition OFF (LOCK).
- Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the following parts:
- Front seat (See FRONT SEAT REMOVAL/INSTALLATION .)
- Front seat side cover (See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION .)
- Front seat back component (See FRONT SEAT BACK COMPONENT REMOVAL/INSTALLATION .)
- Front seat cushion (See FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION .)
- Lumbar support unit (See LUMBAR SUPPORT UNIT REMOVAL/INSTALLATION .)
- Remove the rail protector.

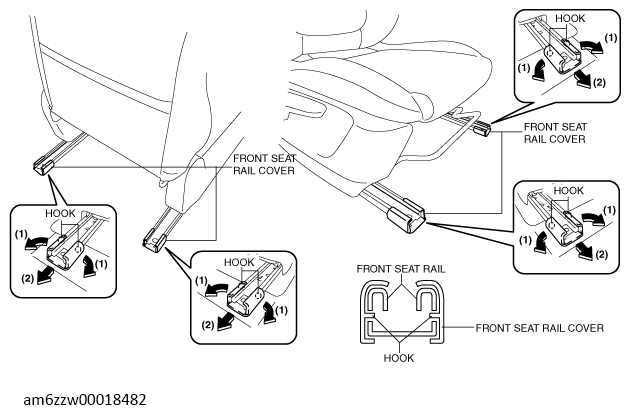

- Release the hooks in the direction of arrows (1) shown in the figure and remove the front seat rail cover in the direction of arrow (2).
- Install in the reverse order of removal.
