Upper Panel Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    2. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    3. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    4. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    5. Rear console component (See REAR CONSOLE REMOVAL/INSTALLATION .)
    6. Console side panel No. 1 (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)

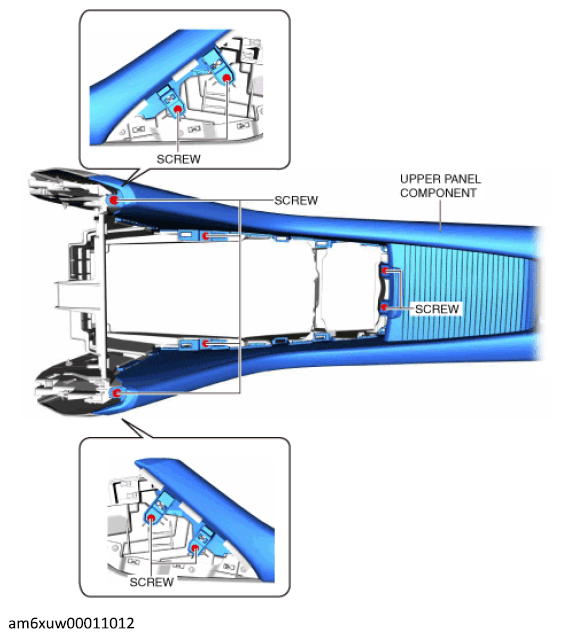

  3. Remove the screws.
    G12236531Courtesy of MAZDA MOTORS CORP.

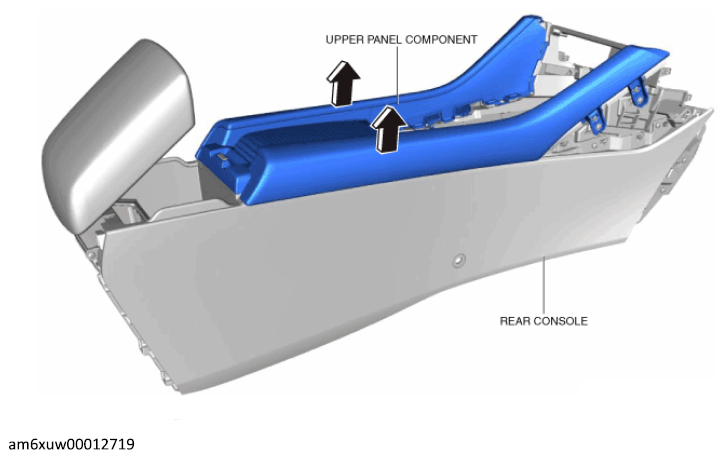

  4. Remove the upper panel component in the direction of the arrows shown in the figure.
    G12236532Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
