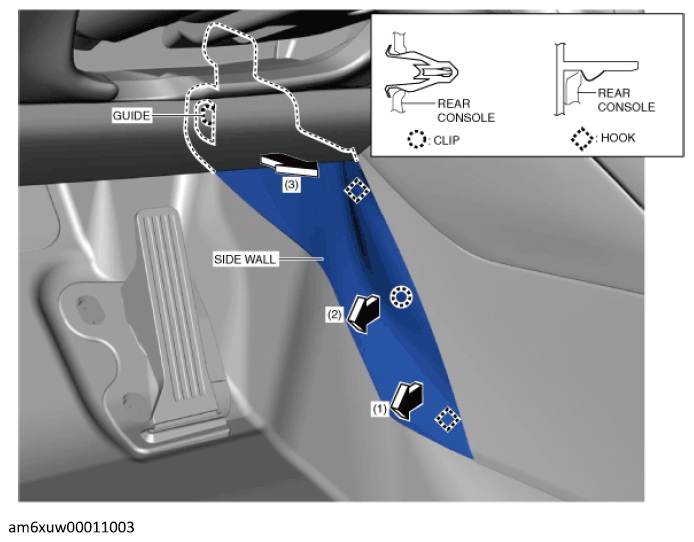

Side Wall Removal/Installation: Driver-side
- Pull the side wall in the direction of the arrow in the order of (1), (2) and remove it while detaching hooks and clip.
- Pull the side wall in the direction of the arrow (3) and remove it while detaching guide.CAUTION:
- If hooks and clip are removed forcefully, guide may be damaged. Carefully remove the hooks and clip so as not to damage guide.
- Install in the reverse order of removal.
