Front Door Trim Disassembly/Assembly: Driver-side

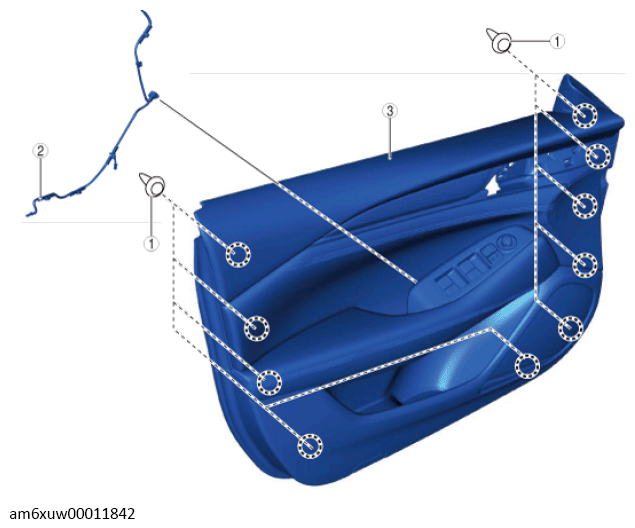

- Disassemble in the order shown in the figure.PARTS DESCRIPTION
1 Fastener 2 Short cord 3 Front door trim - Assemble in the reverse order of disassembly.NOTE:
- When replacing the front door trim, remove the following parts:
- Power window main switch (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
- Door lock switch (See DOOR LOCK SWITCH REMOVAL/INSTALLATION .)
- Power window main switch cover (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
- Courtesy light (See COURTESY LIGHT REMOVAL/INSTALLATION .)
- Pocket light (with pocket light) (See POCKET LIGHT REMOVAL/INSTALLATION .)
- When replacing the front door trim, remove the following parts:
