Dashboard Removal/Installation: Removal

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
    2. Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)
    3. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    4. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    5. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    6. Meter hood cover (See METER HOOD COVER REMOVAL/INSTALLATION .)
    7. Audio panel (See AUDIO PANEL REMOVAL/INSTALLATION .)
    8. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    9. Center panel (See CENTER PANEL REMOVAL/INSTALLATION .)
    10. Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    11. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    12. Meter hood No. 1 (See METER HOOD REMOVAL/INSTALLATION .)
    13. Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    14. Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
    15. Center display (See CENTER DISPLAY REMOVAL/INSTALLATION .)
    16. Hood release lever (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
    17. Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
    18. Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
    19. Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
    20. Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
    21. Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
    22. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    23. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    24. Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
    25. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    26. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    27. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    28. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    29. Rear console component (See REAR CONSOLE REMOVAL/INSTALLATION .)
    30. Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
    31. Knee bolster (See KNEE BOLSTER REMOVAL/INSTALLATION .)
    32. Steering shaft (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
    33. Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION .)
    34. Selector lever component (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    35. Rear vent duct (See REAR VENT DUCT REMOVAL/INSTALLATION .)
    36. Electric parking brake control module (See ELECTRIC PARKING BRAKE CONTROL MODULE REMOVAL/INSTALLATION .)
  3. Remove the electric parking brake control module bracket. (See SAS CONTROL MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
  4. Remove the wiring harness clips.
    G12236381Courtesy of MAZDA MOTORS CORP.
  5. Disconnect the connectors.
  6. Remove the wiring harness clip A, B, and C.
    G12236382Courtesy of MAZDA MOTORS CORP.

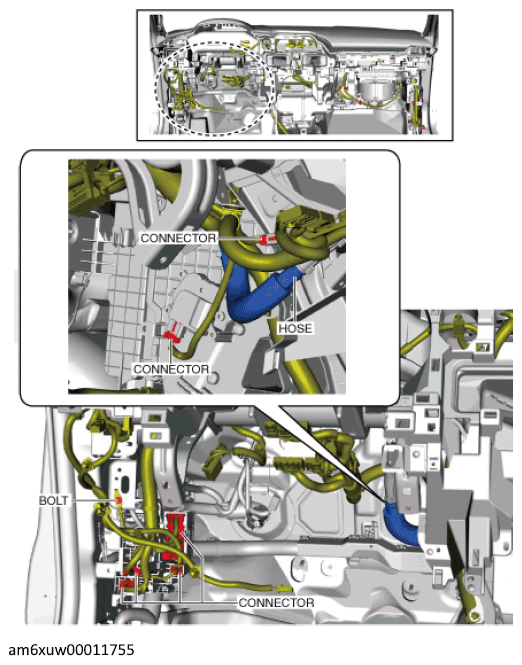

  7. Disconnect the connectors.
  8. Disconnect the connectors.
    G12236383Courtesy of MAZDA MOTORS CORP.
  9. Remove the bolt.
  10. Remove the hose.
  11. Disconnect the connectors.
    G12236384Courtesy of MAZDA MOTORS CORP.

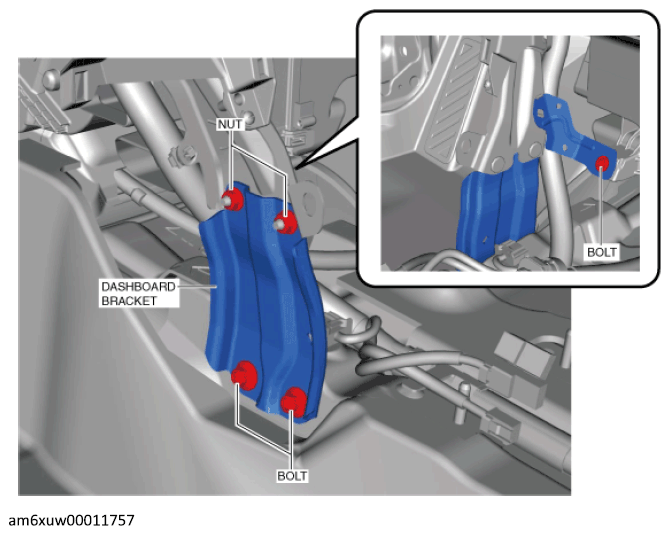

  12. Remove the bolts.
    G12236385Courtesy of MAZDA MOTORS CORP.
  13. Remove the nuts.
  14. Remove the dashboard bracket.
  15. Remove the bolt.
    G12236386Courtesy of MAZDA MOTORS CORP.

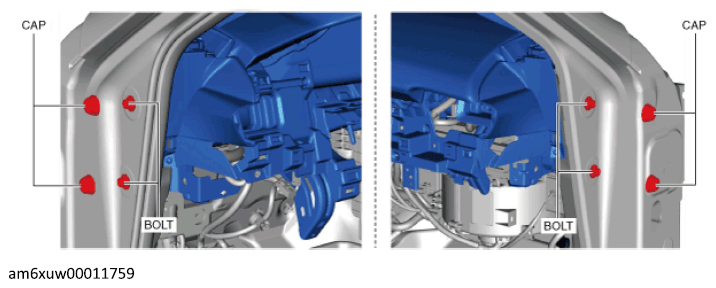

  16. Remove the caps and the bolts.
    G12236387Courtesy of MAZDA MOTORS CORP.

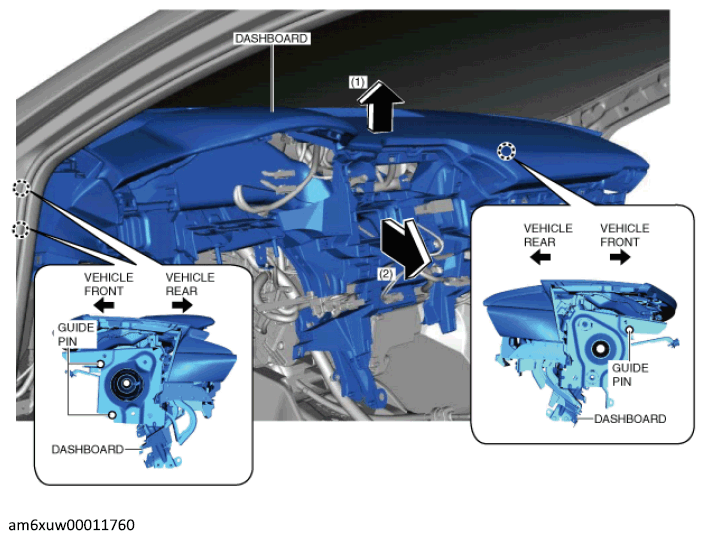

  17. Move the dashboard in the direction of the arrow in the order of (1), (2) shown in the figure, then remove the guide pin.
    G12236388Courtesy of MAZDA MOTORS CORP.

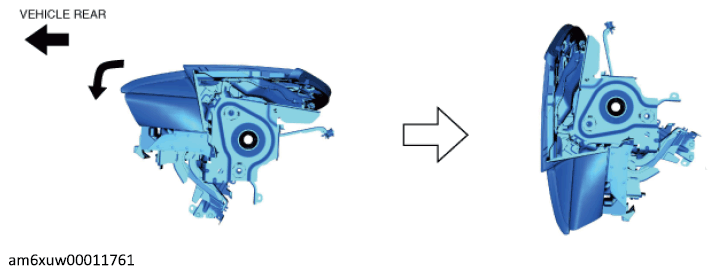

  18. While rotating the dashboard in the direction shown in the figure, pull it out toward the vehicle rear side.
    G12236389Courtesy of MAZDA MOTORS CORP.
  19. Take the dashboard off from the front driver-side door or front passenger-side door opening.
