Assist Handle Removal/Installation: Installation

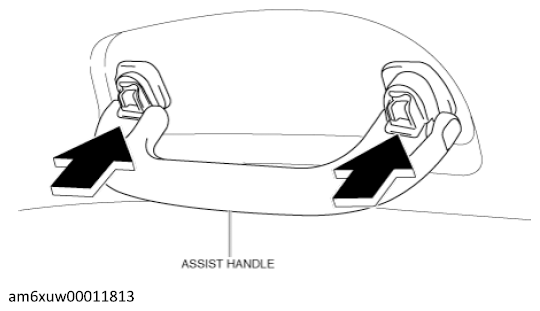

  1. Push the assist handle in the direction of the arrow shown in the figure.
    G12236352Courtesy of MAZDA MOTORS CORP.

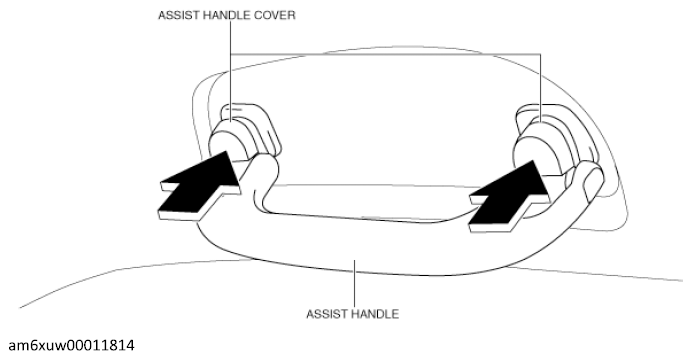

  2. Push the assist handle cover assembled to install the assist handle.
    G12236353Courtesy of MAZDA MOTORS CORP.
