Wiper/Washer System Location Index

Courtesy of MAZDA MOTORS CORP.

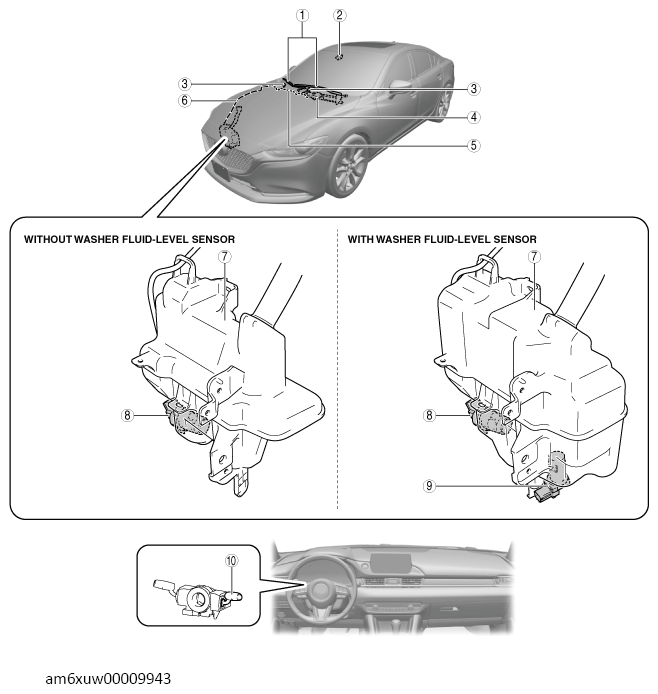

WIPER/WASHER SYSTEM LOCATION INDEX

1	Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .) (See WINDSHIELD WIPER ARM AND BLADE ADJUSTMENT .)
2	Rain sensor (with auto wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION .) (See RAIN SENSOR INITIALIZATION SETTING .) (See WIPER/WASHER SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .)
3	Windshield washer nozzle (See WINDSHIELD WASHER NOZZLE REMOVAL/INSTALLATION .) (See WINDSHIELD WASHER NOZZLE ADJUSTMENT .)
4	Windshield wiper motor and link (See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION .) (See WINDSHIELD WIPER MOTOR INSPECTION .)
5	Windshield washer hose B (See WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION .)
6	Windshield washer hose A (See WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION .)
7	Washer tank (See WASHER TANK REMOVAL/INSTALLATION .)
8	Washer motor (See WASHER MOTOR REMOVAL/INSTALLATION .) (See WASHER MOTOR INSPECTION .)
9	Washer fluid-level sensor (with washer fluid-level sensor) (See WASHER FLUID-LEVEL SENSOR REMOVAL/INSTALLATION .) (See WASHER FLUID-LEVEL SENSOR INSPECTION .)
10	Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION .) (See WINDSHIELD WIPER AND WASHER SWITCH INSPECTION .)
