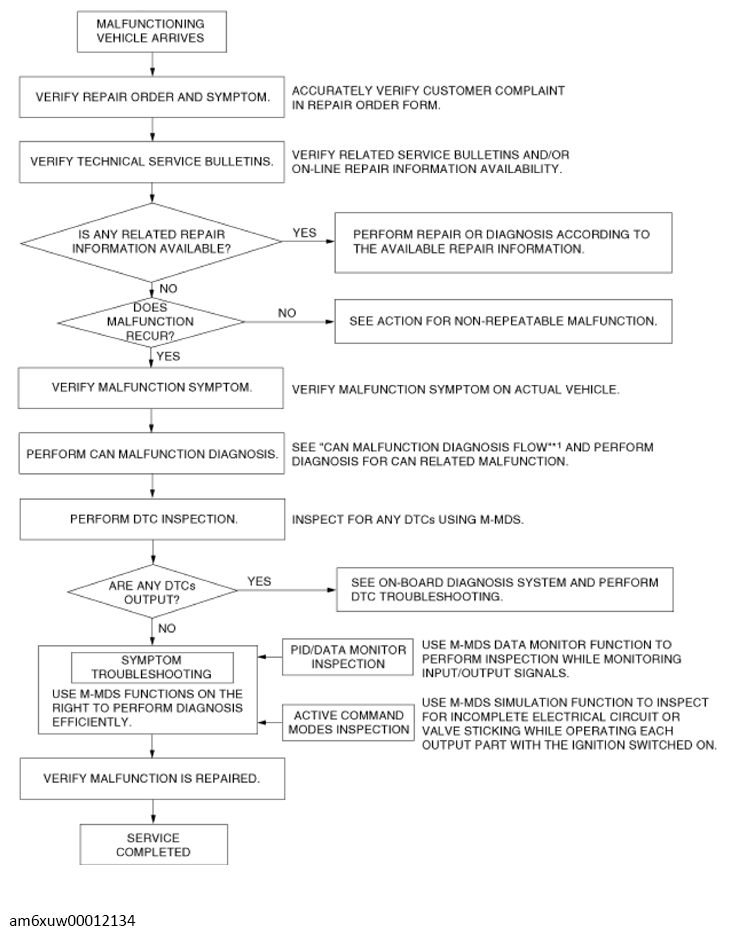

Troubleshooting Procedure

G13726004Courtesy of MAZDA MOTORS CORP.
  1. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [SKYACTIV-G (VIN Y)] .) (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [SKYACTIV-G (VIN M)] .)
