DTC B1D00-13: Headlight (LH) Circuit Malfunction [Adaptive Front Lighting System (AFS) Control Module]: Notes

DTC B1D00:13 [ADAPTIVE FRONT LIGHTING SYSTEM (AFS) CONTROL MODULE] DETECTION CONDITION AND POSSIBLE CAUSE

Description	Headlight (LH) circuit malfunction
Detection condition	The AFS control module detected an open circuit in the headlight (LH) circuit during the headlight LO on control for 5 s or more with the ignition switched ON (engine off or on).
Fail-safe	Control of the AFS is continued. Control of the headlight auto leveling system is continued.

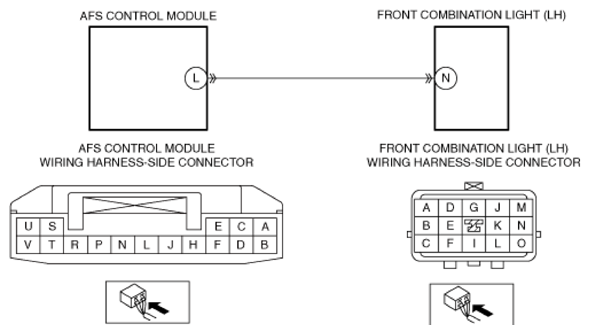

Possible cause	DTCs are stored in the front body control module (FBCM). Headlight LO (LH) circuit malfunction Front combination light (LH) connector or terminal malfunction AFS control module connector or terminal malfunction Short to ground in wiring harness between AFS control module terminal L and front combination light (LH) terminal N Open circuit in wiring harness between AFS control module terminal L and front combination light (LH) terminal N Front combination light (LH) malfunction AFS control module malfunction
Courtesy of MAZDA MOTORS CORP.
