AudioPilot® MICROPHONE REMOVAL/INSTALLATION

NOTE:
  • AudioPilot® is a registered trademark of Bose® Corporation.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Hood release lever (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
    4. Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
    5. Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    6. Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

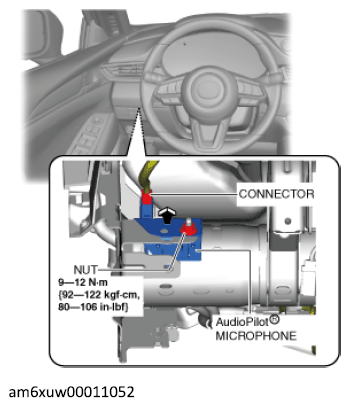

    Fig 1: Audiopilot Microphone Nuts With Torque Specification
    G12235092Courtesy of MAZDA MOTORS CORP.
  4. Remove the nut.
  5. Remove the AudioPilot® microphone.
  6. Install in the reverse order of removal.
