DTC U201F-11: Keyless Receiver Circuit Malfunction [Start Stop Unit]: Notes
DTC U201F:11 [START STOP UNIT] DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Keyless receiver circuit malfunction |
| Detection condition |
- Start stop unit detects that the keyless receiver circuit voltage of less than 3.4 V for 0.5 s or more.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Keyless receiver connector or terminal malfunction
- Start stop unit connector or terminal malfunction

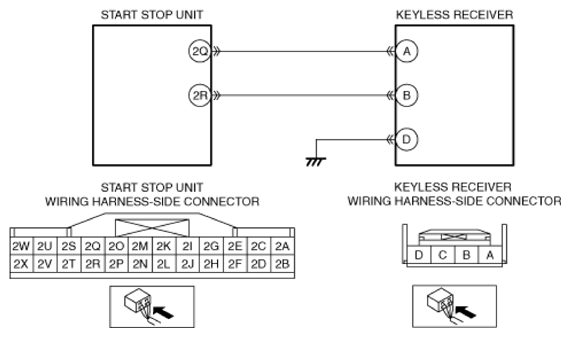

- Short to ground in wiring harness between start stop unit terminal 2Q and keyless receiver terminal A
- Keyless receiver malfunction
- Start stop unit malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
