DTC P0615-13: Starter Relay Circuit Malfunction (Open Circuit) [Start Stop Unit]: Notes
DTC P0615:13 [START STOP UNIT] DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Starter relay circuit malfunction |
| Detection condition |
- Start stop unit detects an open circuit in the starter relay circuit for 0.075 s or more with the ignition switched off.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Disconnect the start stop unit connector with the battery cables connected.
- Starter relay malfunction
- Start stop unit connector or terminal malfunction

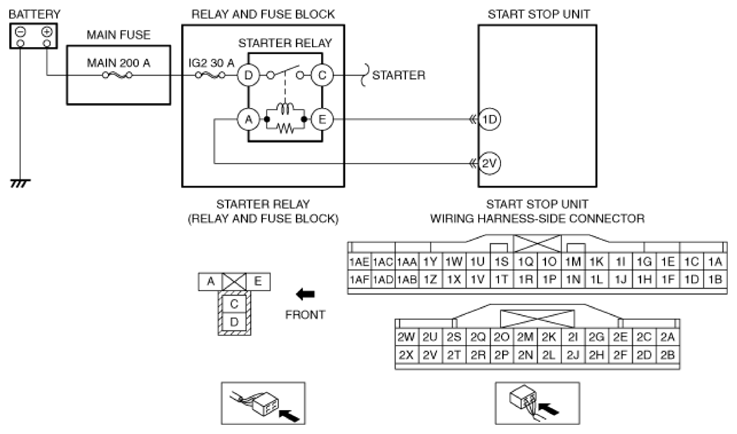

- Open circuit in wiring harness between the following terminals:
- Starter relay terminal E-Start stop unit terminal 1D
- Starter relay terminal A-Start stop unit terminal 2V
- Start stop unit malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
