DTC C0053-14: Steering Angle Sensor B Signal Circuit Malfunction [Start Stop Unit]: Notes
DTC C0053:14 [START STOP UNIT] DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Steering angle sensor B signal circuit malfunction |
| Detection condition |
- Start stop unit detects an open circuit or short to ground in steering angle sensor B signal circuit.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Steering angle sensor connector or terminal malfunction
- Start stop unit connector or terminal malfunction

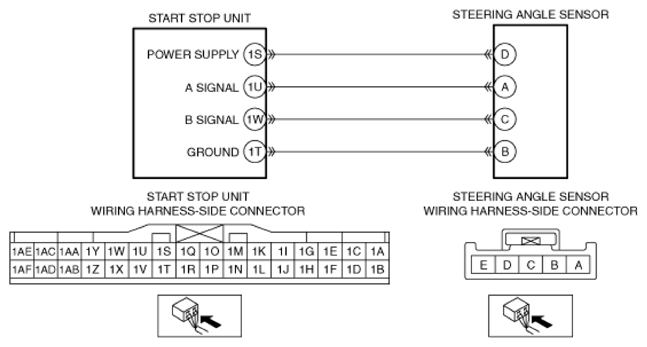

- Short to ground in wiring harness between start stop unit terminal 1W and steering angle sensor terminal C
- Open circuit in wiring harness between start stop unit terminal 1W and steering angle sensor terminal C
- Steering angle sensor malfunction
- Start stop unit malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
