With Keyless Entry System: Notes
DTC B10C9:1F [START STOP UNIT] DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Keyless antenna (interior, center) circuit malfunction |
| Detection condition |
- Start stop unit detects an open circuit or short to ground in the keyless antenna (interior, center) with the ignition switched off.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Keyless antenna (interior, center) connector or terminal malfunction
- Start stop unit connector or terminal malfunction

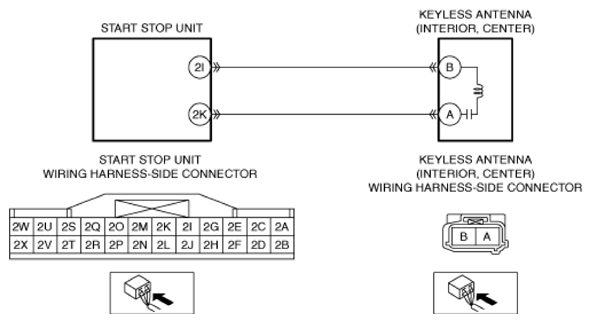

- Short to ground in wiring harness between the following terminals:
- Start stop unit terminal 2I-Keyless antenna (interior, center) terminal B
- Start stop unit terminal 2K-Keyless antenna (interior, center) terminal A
- Open circuit in wiring harness between the following terminals:
- Start stop unit terminal 2I-Keyless antenna (interior, center) terminal B
- Start stop unit terminal 2K-Keyless antenna (interior, center) terminal A
- Keyless antenna (interior, center) malfunction
- Start stop unit malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
