DTC B108B-24: Push Button Start Switch 1 Circuit Malfunction (Stuck Off) [Start Stop Unit]: Notes
DTC B108B:24 [START STOP UNIT] DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Push button start switch 1 circuit malfunction |
| Detection condition |
- Start stop unit detects that the push button start switch 1 is kept in an off condition 5 times or more even though the push button start switch 2 is on.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Push button start connector or terminal malfunction
- Open circuit in wiring harness between push button start terminal G and body ground
- Start stop unit connector or terminal malfunction

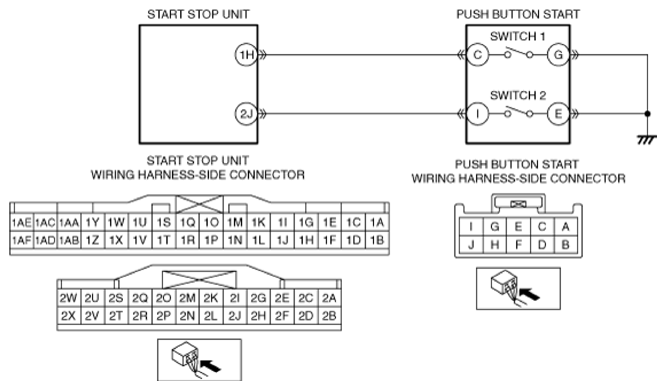

- Open circuit in wiring harness between start stop unit terminal 1H and push button start terminal C
- Push button start switch 1 malfunction
- Start stop unit malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
