Battery Tray Installation Note

  1. Set the battery tray to the installation position.
  2. Tighten the battery tray installation bolts in the order shown in the figure.

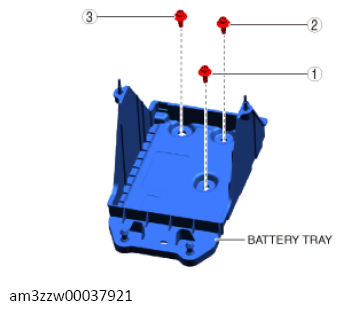

    Fig 1: Battery Tray Bolts Tightening Sequence
    G13714118Courtesy of MAZDA MOTORS CORP.
  3. Install the rubber at the two locations on the air cleaner component to the battery tray.
G11436010Courtesy of MAZDA MOTORS CORP.
