Rivet Installation Note

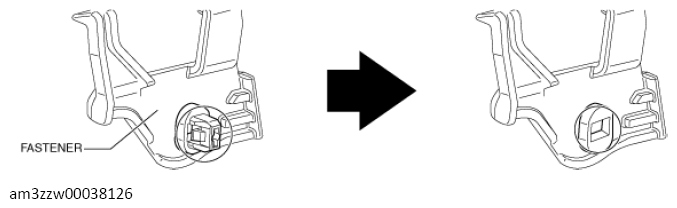

  1. Cut off the area shown in the figure.
    G13717099Courtesy of MAZDA MOTORS CORP.

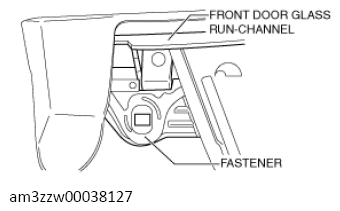

  2. Install the fastener to the front door glass run-channel.
    G13717100Courtesy of MAZDA MOTORS CORP.
  3. Install the fastener.
    G13717090Courtesy of MAZDA MOTORS CORP.

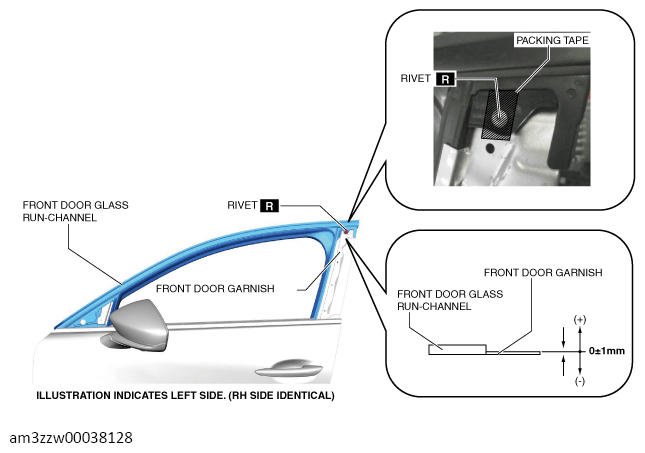

  4. Verify that the difference in level between the front door garnish and the front door glass run-channel is within the range shown in the figure.
    G13717102Courtesy of MAZDA MOTORS CORP.
  5. Install the rivet.
  6. Apply cloth packing tape to the position shown in the figure.
