Front Door Glass Removal/Installation
>>
Service Hole Cover No. 2 Installation Note
Service Hole Cover No. 2 Installation Note
When installing the service hole cover No. 2, verify that the seal rubber is not wet.
Courtesy of MAZDA MOTORS CORP.

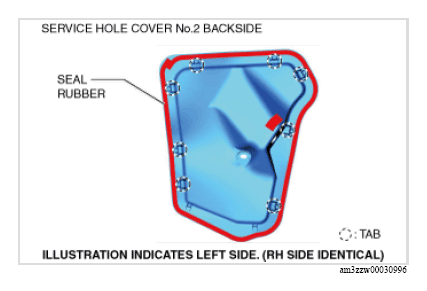

If the seal rubber or a tab is damaged, replace the service hole cover.
Courtesy of MAZDA MOTORS CORP.
