Cylinder Head Cover Installation Note

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • To assure the sealing performance of the cylinder head cover, be careful of the following:
  1. Insert a new cylinder head cover gasket into the cylinder head cover groove.

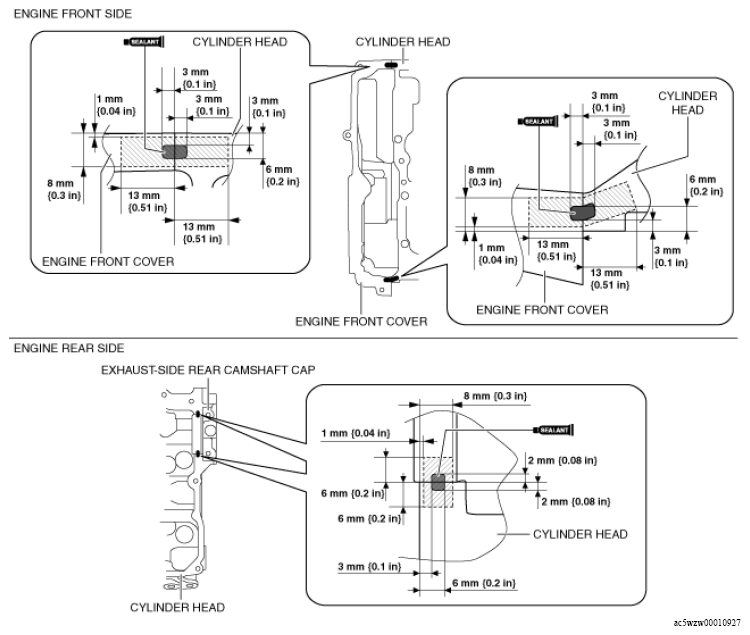

  2. Apply silicone sealant (TB1217D or equivalent) to the areas shown in the figure.
    NOTE:
    • Apply the silicone sealant so that it does not protrude from the shaded area in the figure.
    G13107956Courtesy of MAZDA MOTORS CORP.

    Thickness

    2-6 mm {0.1-0.2 in}

  3. Install the cylinder head cover.
  4. Temporarily tighten the cylinder head cover bolts.
  5. Tighten the cylinder head cover bolts in the order shown in the figure.

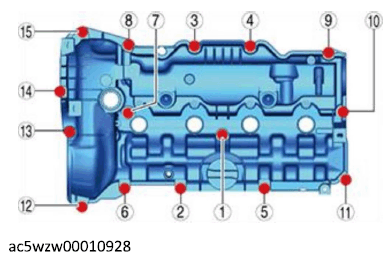

    Fig 1: Cylinder Head Cover Bolts Tightening Sequence
    G12188738Courtesy of MAZDA MOTORS CORP.
  6. Measure the tightening torque again and verify that it is 6.0 N7m {61 kgf.cm, 53 in.lbf} or more.
  7. Install the vacuum hose. (See VACUUM HOSE REMOVAL/INSTALLATION .)

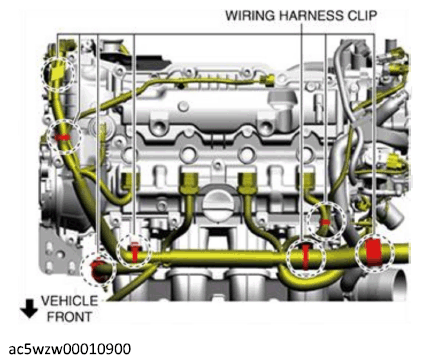

  8. Install the wiring harness clips shown in the figure.
    G12188675Courtesy of MAZDA MOTORS CORP.

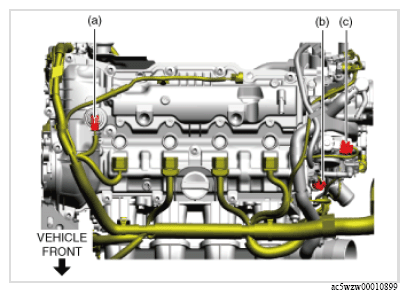

  9. Connect the following parts connectors.
    G13107893Courtesy of MAZDA MOTORS CORP.
    1. OCV for hydraulic variable valve timing system
    2. OCV for No. 4 cylinder deactivation
    3. High pressure fuel pump

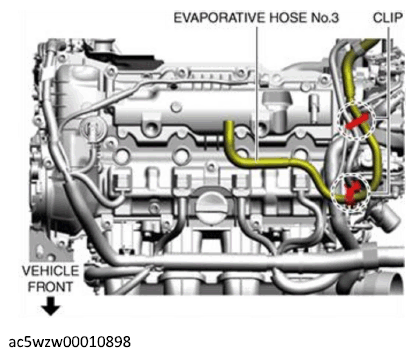

  10. Install evaporative hose No. 3 to the clips shown in the figure.
    G12188673Courtesy of MAZDA MOTORS CORP.
  11. Install the purge solenoid valve component using the following procedure:
    1. Return purge solenoid valve component to its original position.

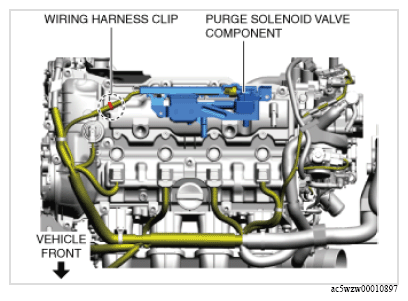

    2. Install the wiring harness clip shown in the figure.
      G13107891Courtesy of MAZDA MOTORS CORP.
    3. Tighten the bolts shown in the figure.

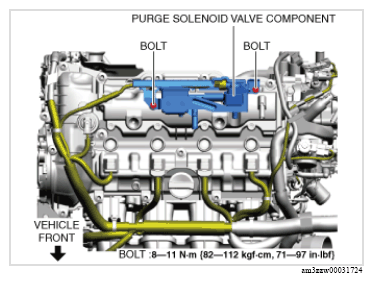

      Fig 2: Purge Solenoid Valve Component Bolts With Torque Specification
      G13174670Courtesy of MAZDA MOTORS CORP.

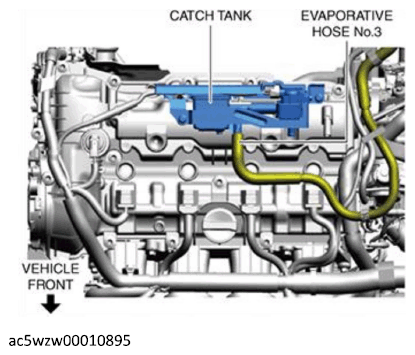

    4. Connect the evaporative hose No. 3 to the catch tank. (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION .)
      G12188670Courtesy of MAZDA MOTORS CORP.

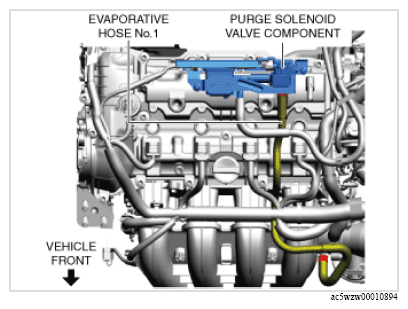

    5. Install the evaporative hose No. 1.
    G13107888Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • For the evaporative hose No. 1 installation, refer to the following major item.

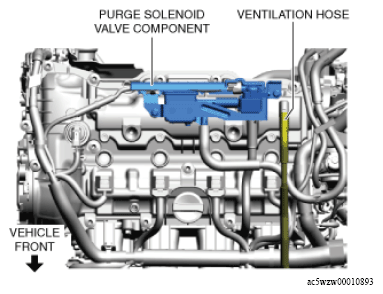

  12. Connect the ventilation hose to the cylinder head cover. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
G13107965Courtesy of MAZDA MOTORS CORP.
