Rectifier (Using an analog circuit tester)

  1. Inspect for continuity of the diodes using an analog circuit tester.

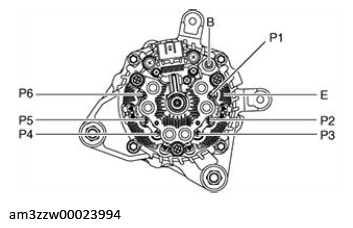

    G13175339Courtesy of MAZDA MOTORS CORP.
    • If not as specified, replace the generator.
    CIRCUIT CONTINUITY SPECIFICATION

    Positive Negative Continuity
    P1, P2, P3, P4, P5, P6 B Yes
    B P1, P2, P3, P4, P5, P6 No
  2. Inspect for continuity of the diodes using an analog circuit tester.
    • If not as specified, replace the generator.
CIRCUIT CONTINUITY SPECIFICATION

Positive Negative Continuity
E P1, P2, P3, P4, P5, P6 Yes
P1, P2, P3, P4, P5, P6 E No
