Side Bearing Disassembly Note

CAUTION:
  • Mark or otherwise distinguish between the left and right side bearings so that they are not mixed up at the time of reassembly.

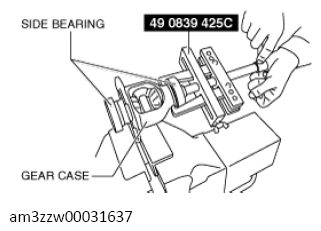

  1. Remove the side bearing inner races from the gear case using the SST.
G13558084Courtesy of MAZDA MOTORS CORP.
