Ring Gear Disassembly Note

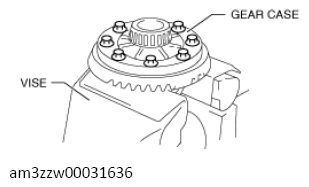

  1. Secure the gear case in a vise and remove the bolts.
    G13558083Courtesy of MAZDA MOTORS CORP.
  2. Lightly tap around the ring gear using a plastic hammer to remove the ring gear from the gear case.
