Rear Cover Disassembly Note

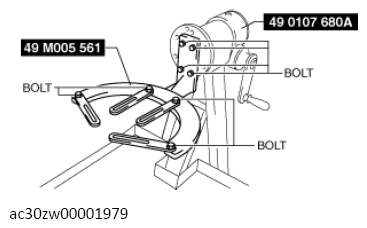

  1. Install the SSTs to the engine stand.
    G13558076Courtesy of MAZDA MOTORS CORP.

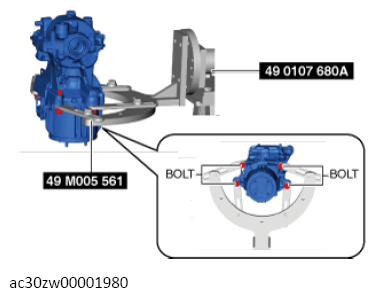

  2. Install the rear differential to the SSTs.
    G13558077Courtesy of MAZDA MOTORS CORP.
  3. Remove the rear cover.
