Bearing Outer Race Assembly Note

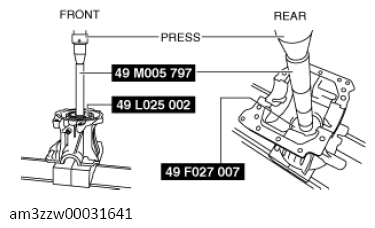

Press in the bearing outer race using the SSTs and a press.

G13558048

Courtesy of MAZDA MOTORS CORP.
