Down Switch: Notes

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the screw.
    G13176680Courtesy of MAZDA MOTORS CORP.

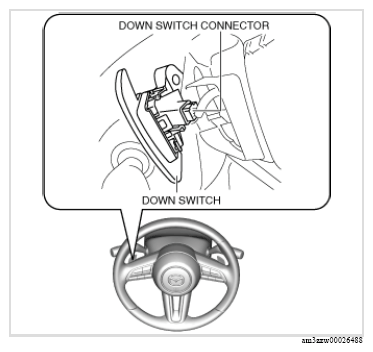

  3. Disconnect the down switch connector.
    G13176684Courtesy of MAZDA MOTORS CORP.
  4. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  5. Verify that the continuity between down switch component terminals A and B.
    G13716008Courtesy of MAZDA MOTORS CORP.
    • If there is any malfunction, replace the down switch.
