Tie-Rod End Replacement: Removal

  1. Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
  2. Remove the snap pin from the tie-rod end.

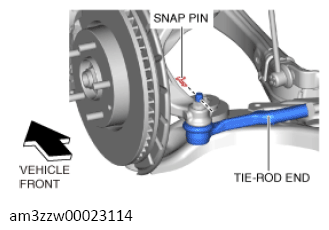

    G13716133Courtesy of MACK TRUCKS, INC.
  3. Loosen the locknut of the tie-rod end.
    G13177112Courtesy of MACK TRUCKS, INC.
  4. Detach the tie-rod end from the steering knuckle using the SST.

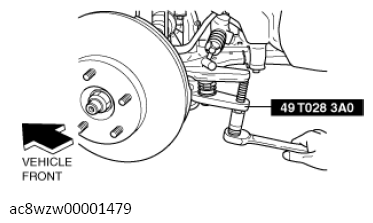

    G13559001Courtesy of MACK TRUCKS, INC.
  5. Remove the locknut of the tie-rod end.
    G13177114Courtesy of MACK TRUCKS, INC.
  6. Place alignment marks as shown in the figure for reference in tie-rod end assembly.
    G13177115Courtesy of MACK TRUCKS, INC.
  7. Remove the tie-rod end.
    G13177116Courtesy of MACK TRUCKS, INC.
