Intermediate Shaft Removal Note: Notes

  1. Place an alignment mark across the break between the steering column and the yoke for the intermediate shaft as shown in the figure.
    G13177040Courtesy of MACK TRUCKS, INC.
  2. Place alignment marks on the steering gear (pinion) and intermediate shaft as shown in the figure.
    G13177041Courtesy of MACK TRUCKS, INC.

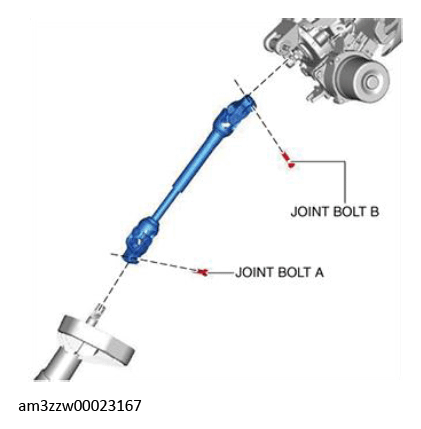

  3. Remove the joint bolts in the order of joint bolts A and B.
    G13177042Courtesy of MACK TRUCKS, INC.
  4. Remove the intermediate shaft.
