Refrigerant Line Removal Note

CAUTION:
  • When securing the block with pliers, wrap a clean cloth around the block. If the block is secured with pliers directly, it could be damaged.

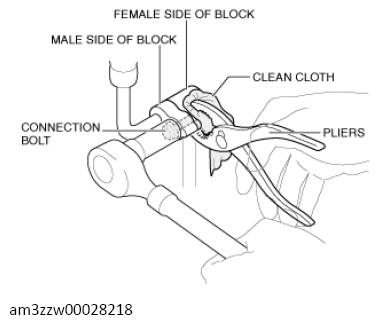

  1. Disconnect the block joint type pipes by grasping the female side of the block with pliers or similar tool and holding firmly, then tighten the connection bolt or nut.
    G13559226Courtesy of MAZDA MOTORS CORP.
