MAGNETIC CLUTCH INSPECTION (VINs 7, L, M)
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Disconnect the magnetic clutch connector. (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY (VINs 7, L, M) .)

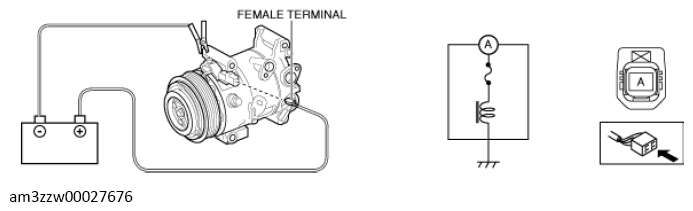

- Connect battery to terminal A of magnetic clutch and ground to A/C compressor body.
- Verify that the magnetic clutch operates.
- If there is any malfunction, replace the magnetic clutch. (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY (VINs 7, L, M) .)
