Evaporator Temperature Sensor Assembly Note

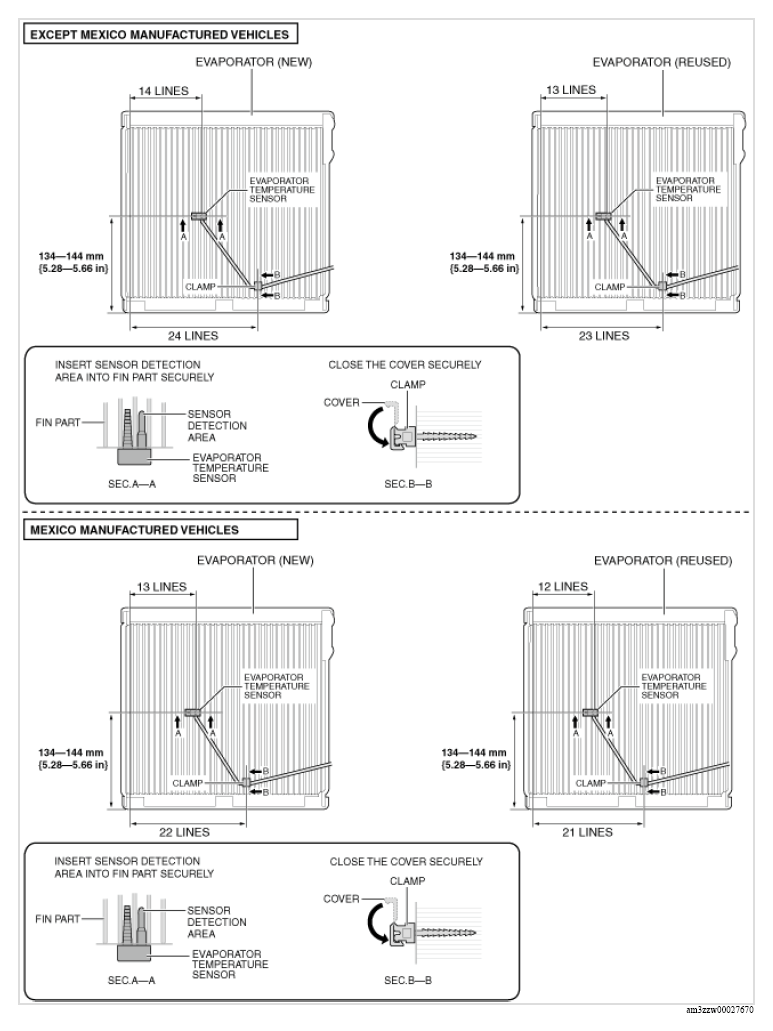

  1. Assemble the evaporator temperature sensor at the position shown in the figure.
    G13177371Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • When the evaporator is reused, slide the evaporator temperature sensor away from the conventional position and assemble. If the evaporator temperature sensor is assembled to the conventional position when reusing the evaporator, it may not be assembled correctly due to fin deformation and the sensor may not function.
    NOTE:
    • If an evaporator temperature sensor cannot be correctly positioned on the evaporator, replace the evaporator.
