Intake-Air System Location Index

WARNING: This page is about a different variant/trim than selected.

Courtesy of MAZDA MOTORS CORP.

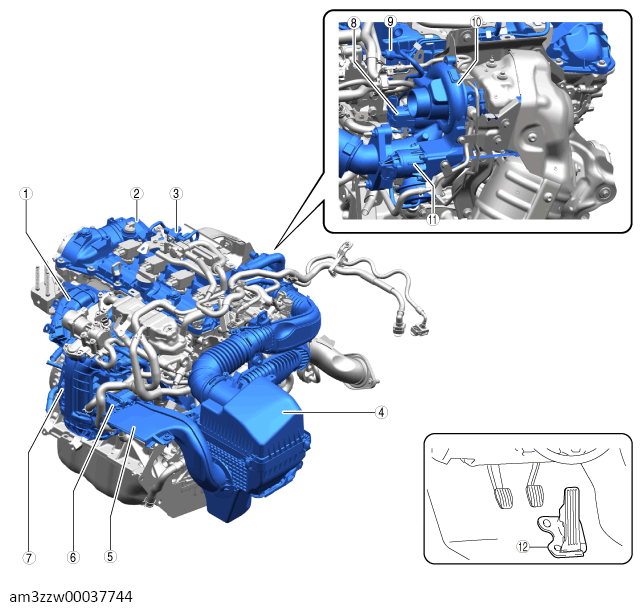

PART DESCRIPTION

1	Intake manifold (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .) (See INTAKE MANIFOLD VACUUM INSPECTION .)
2	Cylinder head cover (built-in vacuum chamber) (See VACUUM CHAMBER INSPECTION .) (See VACUUM CHAMBER REMOVAL/INSTALLATION .)
3	Three way solenoid valve (See THREE WAY SOLENOID VALVE INSPECTION .) (See THREE WAY SOLENOID VALVE REMOVAL/INSTALLATION .)
4	Air cleaner (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .) (See AIR CLEANER ELEMENT REMOVAL/INSTALLATION .) (See AIR CLEANER ELEMENT INSPECTION .)
5	Fresh-air duct (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
6	Throttle body (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .) (See THROTTLE BODY INSPECTION .)
7	Charge air cooler (See WATER-COOLED CHARGE AIR COOLER REMOVAL/INSTALLATION .) (See WATER-COOLED CHARGE AIR COOLER INSPECTION .)
8	Air bypass valve (See AIR BYPASS VALVE INSPECTION .) (See AIR BYPASS VALVE REMOVAL/INSTALLATION .)
9	Check valve (intake-air system) (See CHECK VALVE (INTAKE-AIR SYSTEM) REMOVAL/INSTALLATION .) (See CHECK VALVE (INTAKE-AIR SYSTEM) INSPECTION .)
10	Dynamic pressure turbo (See DYNAMIC PRESSURE TURBO REMOVAL/INSTALLATION .) (See DYNAMIC PRESSURE TURBO INSPECTION .)
11	Wastegate valve actuator (See WASTEGATE VALVE ACTUATOR INSPECTION .) (See WASTEGATE VALVE ACTUATOR REMOVAL/INSTALLATION .)
12	Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION .)
