Section 9 (Intake-Air System And Turbocharger (VIN Y))
>>
Check Valve (Intake-Air System) Removal/Installation
>>
Check Valve Installation Note
Check Valve Installation Note
WARNING:
This page is about a different variant/trim than selected.

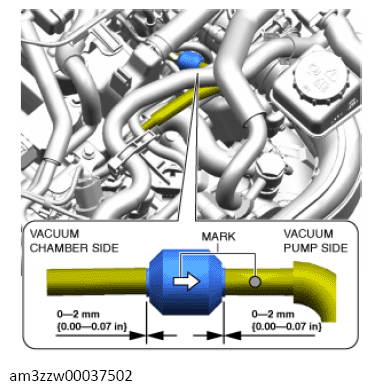

Install the check valve as shown in the figure.
Courtesy of MAZDA MOTORS CORP.
