Water Pump Component Installation Note

WARNING: This page is about a different variant/trim than selected.

Tighten the bolts in the order shown in the figure.

Fig 1: Water Pump Bolts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
Install the engine oil temperature sensor/engine oil pressure sensor. (See ENGINE OIL TEMPERATURE SENSOR/ENGINE OIL PRESSURE SENSOR REMOVAL/INSTALLATION .)

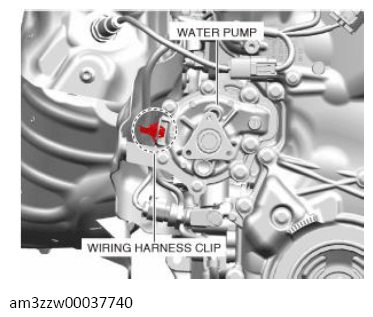

Install the wiring harness clip shown in the figure.

Courtesy of MAZDA MOTORS CORP.
Tighten the bolt shown in the figure.

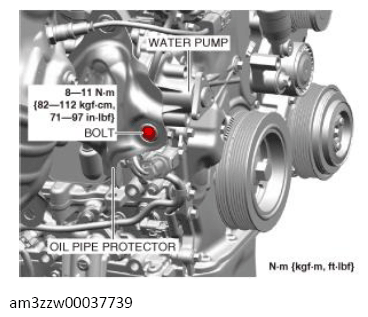

Fig 2: Water Pump, Oil Pipe Protector And Bolt With Torque Specification

Courtesy of MAZDA MOTORS CORP.
