Coolant Reserve Tank Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)

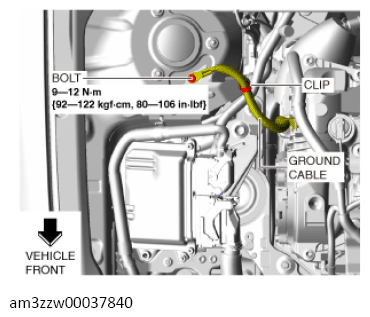

Remove the clip and bolt shown in the figure and set the ground cable aside.

Fig 1: Ground Cable Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.

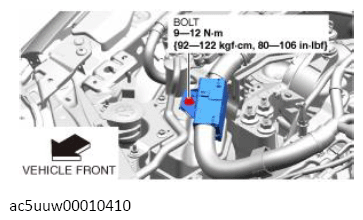

Remove the bolt.

Fig 2: Wiring Harness Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.

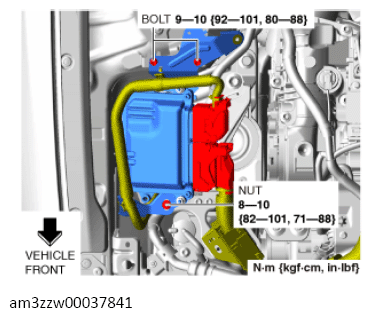

Remove the bolts shown in the figure and set aside the PCM wiring harness to the engine upper side.

Fig 3: PCM Wiring Harness, Nut And Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.

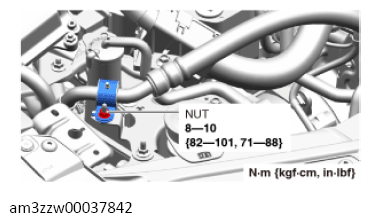

Remove the nut.

Fig 4: Hose Nut With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove in the order indicated in the table.
Install in the reverse order of removal.

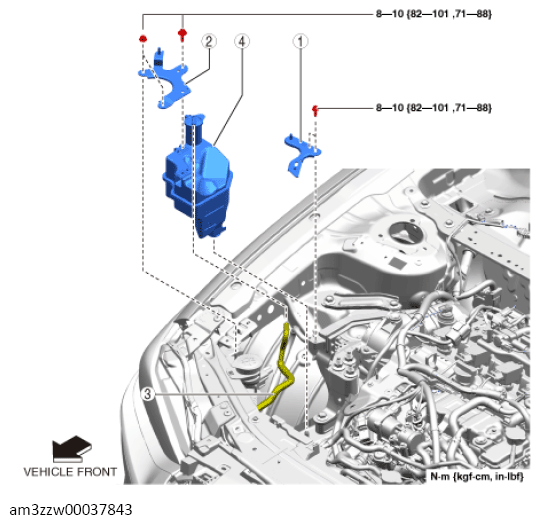

Fig 5: Coolant Reserve Tank Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Bracket
2	Bracket
3	Hose
4	Coolant reserve tank (See COOLANT RESERVE TANK REMOVAL NOTE .)
