Section 34 (Intake-Air System (VIN M))
>>
Intake-Air System Removal/Installation
>>
Air Cleaner Case Installation Note
Air Cleaner Case Installation Note
WARNING:
This page is about a different variant/trim than selected.

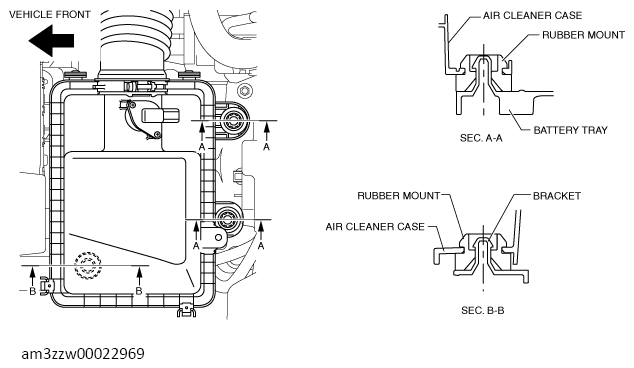

Install the air cleaner case as shown in the figure.
Courtesy of MAZDA MOTORS CORP.
